▎Product Advantages
Pluggable design：Separate plug & socket, quick wiring and disassembly, convenient for PCB testing and maintenance.
7.5mm standard pitch：Universal size, compatible with most industrial PCB boards.
Screw clamping connection：Strong wire gripping force, prevents loose contact under vibration.
▎Technical Data

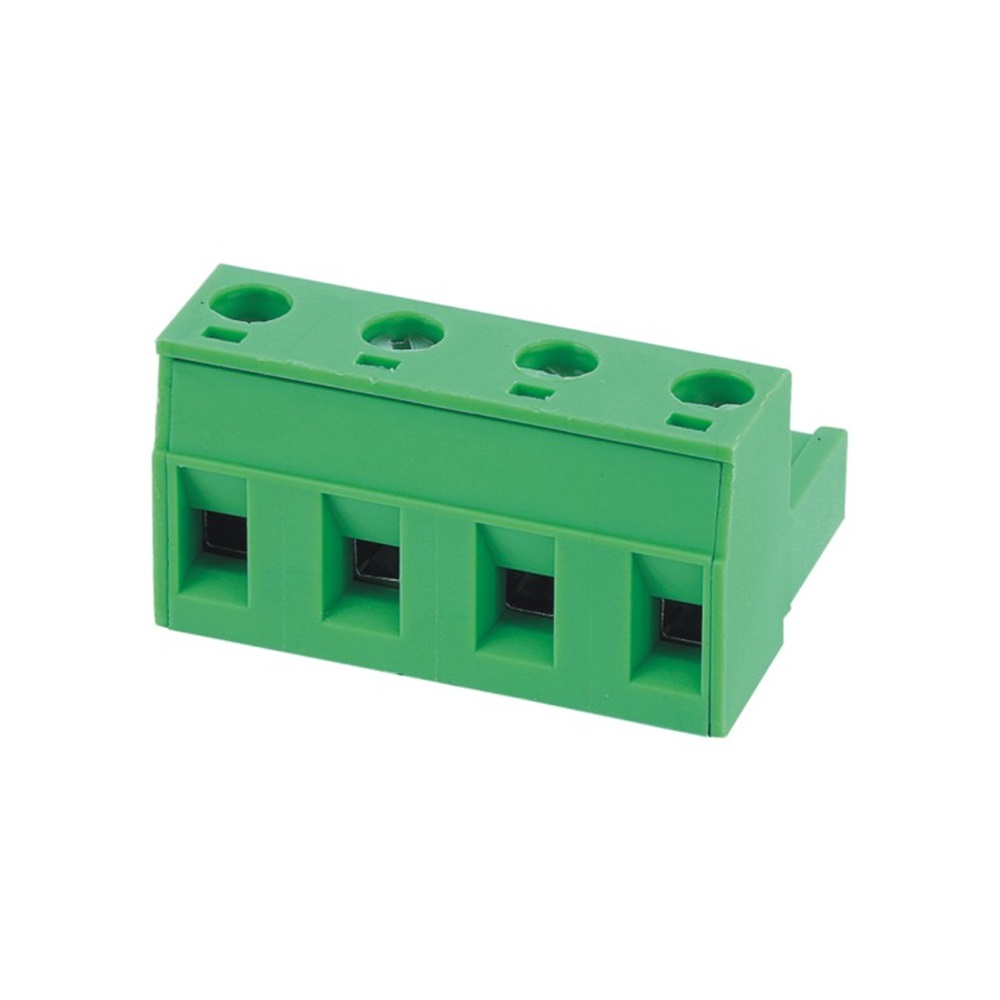

Model Item | 2EGTK-7.5 |
Type | Pluggable Terminal Block |
Pitch (mm) | 7.5mm |
No.of Poles | 2-24 |
UL |
Rated voltage(B) | 300V |
Rated current(B) | 20A |
Torque Value (Lb,in) | 3.54Lb.in |
Connection range(AWG) | 28~12AWG |
IEC |
Rated voltage(IEC) | 320V |
Rated current(IEC) | 20A |
Torque Value (N.m) | 0.4N.m |
Rigid conductor size(mm²) | 1.0~2.5mm² |
Flexible conductor size(mm²) | 1.0~2.5mm² |
Item properties |
Stripping length | 7mm |
Ambient Temperature | -40℃~+105℃ |
Wire connection direction | 0° |
Connection Technology | Screw connection |
Screw thread | M2.5/M3 |
Material |
Insulation material | PA66, UL94V-0 |
Contact material | Copper alloy. |
Conductor surface plating | Sn plated |
