▎Product Advantages
Feedthrough / Through-panel Design
Wire-to-board through-panel structure, Reliable CAGE CLAMP Spring Connection
Vibration-resistant, no loose contact; no need for re-tightening screws after long-term operation. Quick wiring with screwdriver.
Extended wire-wrap pins for reliable soldering on PCB, good mechanical strength, stable electrical transmission.
Wide Industrial Application
▎Technical Data

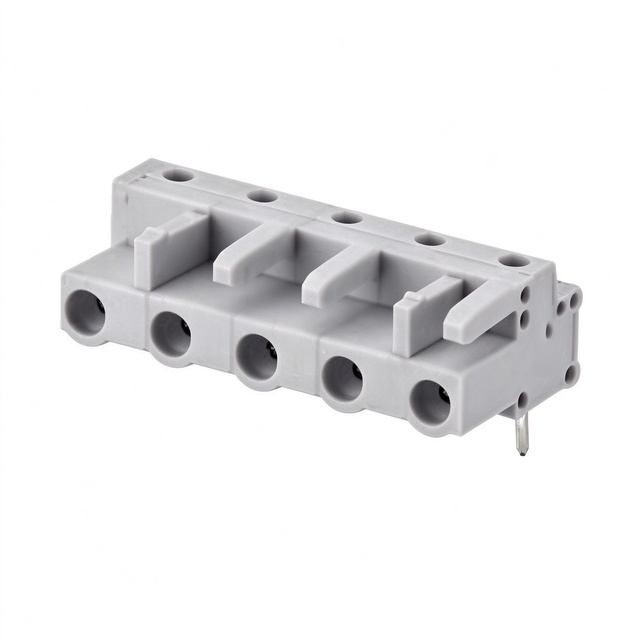

Model Item | MC085M-7.5 |
Type | MC Multi Purpose Cnnector |
Pitch (mm) | 7.5mm |
No.of Poles | 2-12 |
UL |
Rated voltage(B) | 300V |
Rated current(B) | 15A |
Torque Value (Lb,in) | / |
Connection range(AWG) | / |
IEC |
Rated voltage(IEC) | 400V |
Rated current(IEC) | 20A |
Torque Value (N.m) | / |
Rigid conductor size(mm²) | / |
Flexible conductor size(mm²) | / |
Item properties |
Stripping length | / |
Ambient Temperature | -40℃~+105℃ |
Wire connection direction | 0° |
Connection Technology | / |
Screw thread | / |
Material |
Insulation material | PA66, UL94V-0 |
Contact material | Copper alloy. |
Conductor surface plating | Sn plated |
