▎Product Advantages
Quick pluggable mating design, easy assembly and disconnection for convenient maintenance
Compatible with multiple types of mating sockets, delivering high flexibility for equipment design
Cage clamp connection technology enables fast and efficient wiring operation
Universal mounting structure to adapt to diverse application scenarios
Secure locking structure, prevents accidental separation under vibration
Compact modular design, saves space on PCB board
▎Technical Data

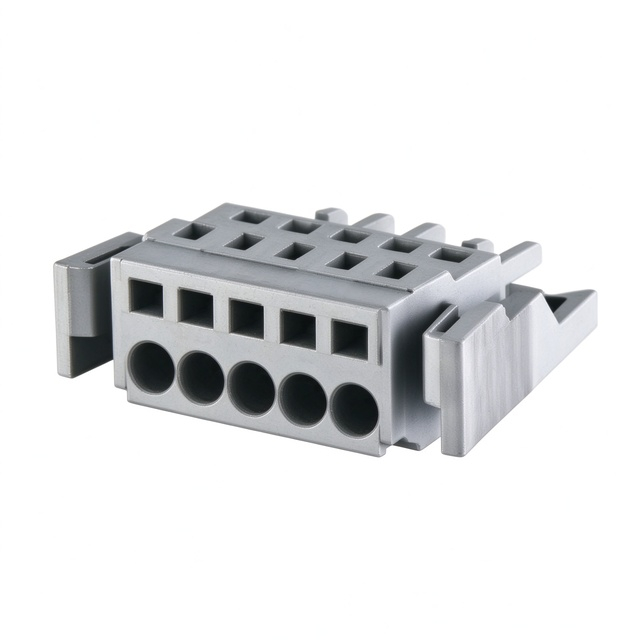

Model Item | MC006G-7.62 |
Type | MC Multi Purpose Cnnector |
Pitch (mm) | 7.62mm |
No.of Poles | 2-12 |
UL |
Rated voltage(B) | 300V |
Rated current(B) | 15A |
Torque Value (Lb,in) | / |
Connection range(AWG) | 22~14AWG |
IEC |
Rated voltage(IEC) | 400V |
Rated current(IEC) | 20A |
Torque Value (N.m) | / |
Rigid conductor size(mm²) | 0.2~2.5mm² |
Flexible conductor size(mm²) | 0.2~2.5mm² |
Item properties |
Stripping length | 10mm |
Ambient Temperature | -40℃~+105℃ |
Wire connection direction | 0° |
Connection Technology | Spring-cage connection |
Screw thread | / |
Material |
Insulation material | PA66, UL94V-0 |
Contact material | Copper alloy. |
Conductor surface plating | Sn plated |
