▎Product Advantages
Quick pluggable mating design, fast connection and disconnection for convenient on-site maintenance
Universal mounting method, delivering great flexibility for equipment design
Parallel-to-PCB plugging direction, optimizing layout arrangement on circuit boards
Precise mating structure, stable engagement and prevents loosening under vibration
Compact modular design, saves PCB board space
▎Technical Data

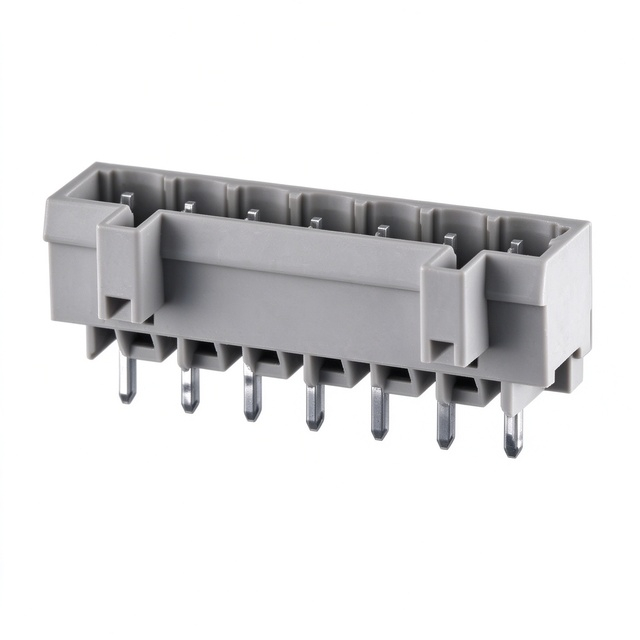

Model Item | MC007-5.08 |
Type | MC Multi Purpose Connector |
Pitch (mm) | 5.08mm |
No.of Poles | 2-24 |
UL |
Rated voltage(B) | 300V |
Rated current(B) | 15A |
Torque Value (Lb,in) | / |
Connection range(AWG) | / |
IEC |
Rated voltage(IEC) | 320V |
Rated current(IEC) | 20A |
Torque Value (N.m) | / |
Rigid conductor size(mm²) | / |
Flexible conductor size(mm²) | / |
Item properties |
Stripping length | / |
Ambient Temperature | -40℃~+105℃ |
Wire connection direction | / |
Connection Technology | / |
Screw thread | / |
Material |
Insulation material | PA66, UL94V-0 |
Contact material | Copper alloy. |
Conductor surface plating | Sn plated |
