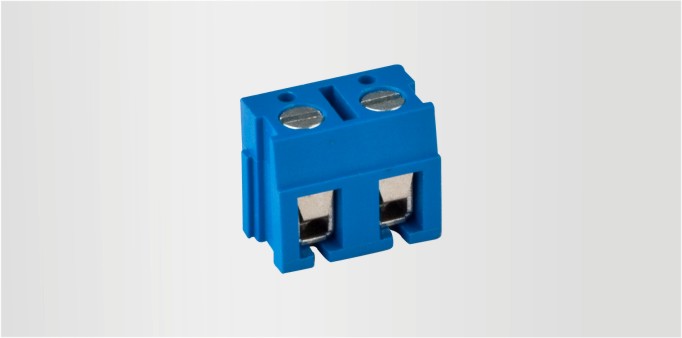

Click to view a larger version
GT305-7.5
Approval
standard
UL
IEC
Rated voltage
300V
450V
Rated current
15A
20A
Wire diameter
22-14AWG
2.5mm2
spacing
7.5mm
series
2P,3P-24P
Description
Housing:
PBT; UL94V-0
Pin header:
brass,Tin-plated
Wire guard:
Stainless steel
Screw:
Steel,M2.5,Cr
3+
Zn plated
Withstanding voltage:
AC2500V/1Min
Operating temperature:
-30℃ to +120℃
Torque:
0.5N.m(4.4Lb.in)
Strip length:
5-6mm
[
