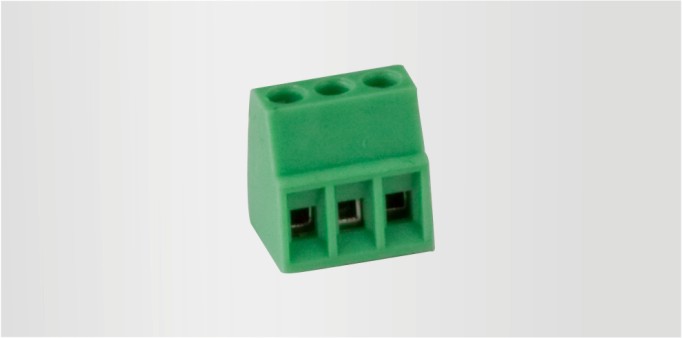

GT308-2.54

Approval
standardULIEC
Rated voltage150V130V
Rated current6A8A
Wire diameter26-18AWG1.0mm2
spacing2.54mm
series2P-12P
Description
Housing:PA66; UL94V-0
Pin header:brass,Tin-plated
Cage:Stainless steel
Screw:Steel,M1.6,Cr3+Zn plated
Withstanding voltage:AC1250V/1Min
Operating temperature:-40℃ to +105℃
Torque:0.1N.m(0.89Lb.in)
Strip length:4.5mm
