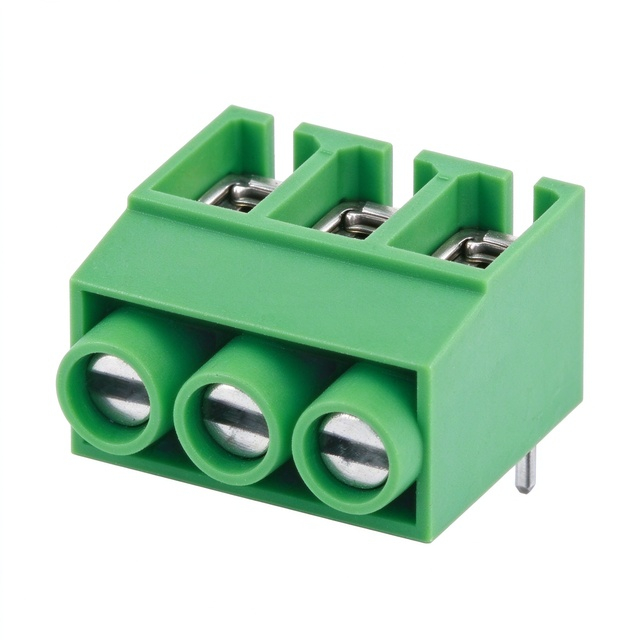

▎Product Advantages
Screw clamping mechanism, strong wire holding force, stable and durable electrical connection
Flexible universal mounting style, offers great freedom for equipment design
Side locking buckles allow free assembly of different pole counts
5.0mm standard pitch, through-hole pin design for firm soldering on PCB
Compact vertical housing design, saves space on PCB board
Multiple pole options available to meet various circuit wiring demands
▎Technical Data
Model Item | GT167R-5.0 |
Type | PCB Screw Terminal Block |
Pitch (mm) | 5.0mm |
No.of Poles | 2-12 |
UL |
Rated voltage(B) | 300V |
Rated current(B) | 10A |
Torque Value (Lb,in) | 3.54Lb.in |
Connection range(AWG) | 26~14AWG |
IEC |
Rated voltage(IEC) | 250V |
Rated current(IEC) | 22A |
Torque Value (N.m) | 0.4N.m |
Rigid conductor size(mm²) | 0.5~2.5mm² |
Flexible conductor size(mm²) | 0.5~2.5mm² |
Item properties |
Stripping length | 7mm |
Ambient Temperature | -40℃~+105℃ |
Wire connection direction | 90° |
Connection Technology | Screw connection |
Screw thread | M2.5 |
Material |
Insulation material | PA66, UL94V-0 |
Contact material | Copper alloy. |
Conductor surface plating | Sn plated |
