▎Product Advantages
Pluggable Wire-to-Board Structure; Compatible with multiple mating plugs, highly flexible for device design; Proven CAGE CLAMP Spring Connection; Universal mounting style, suitable for various application scenarios; Integrated Test Hole per Pole; High Electrical Rating & Industrial Durability
▎Technical Data

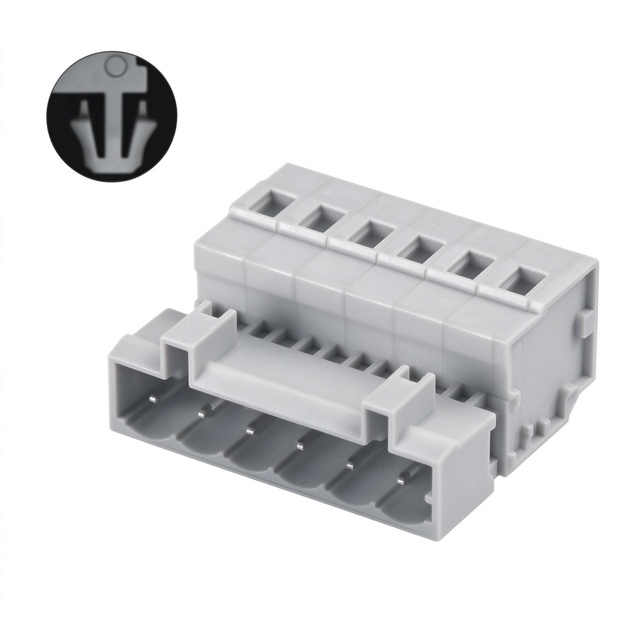

Model Item | MC009D-5.0 |
Type | MC Multi Purpose Cnnector |
Pitch (mm) | 5.0mm |
No.of Poles | 2-24 |
UL |
Rated voltage(B) | 300V |
Rated current(B) | 15A |
Torque Value (Lb,in) | / |
Connection range(AWG) | 22~14AWG |
IEC |
Rated voltage(IEC) | 320V |
Rated current(IEC) | 20A |
Torque Value (N.m) | / |
Rigid conductor size(mm²) | 0.2~2.5mm² |
Flexible conductor size(mm²) | 0.2~2.5mm² |
Item properties |
Stripping length | 9mm |
Ambient Temperature | -40℃~+105℃ |
Wire connection direction | 0° |
Connection Technology | Spring-cage connection |
Screw thread | / |
Material |
Insulation material | PA66, UL94V-0 |
Contact material | Copper alloy. |
Conductor surface plating | Sn plated |
